Humidity and Condensation Chamber Test

The Humidity and Condensation Chamber Test is a widely used laboratory method to evaluate how coatings perform when exposed to high humidity and continuous condensation. Since moisture is one of the most aggressive factors causing coating degradation, this test is essential for assessing the moisture resistance, adhesion stability, and protective ability of coatings under accelerated conditions.

Purpose of the Test

This test is designed to simulate environments where coatings are exposed to warm, moist atmospheres, such as:

• Tropical and subtropical climates
• Indoor environments with high relative humidity
• Condensation-prone areas (e.g., near water tanks, pipelines, or HVAC systems)

By replicating these conditions, the test identifies coatings that may suffer from blistering, loss of adhesion, swelling, softening, or corrosion creep at an early stage.

International Standards

The test is standardized globally to ensure reproducibility and comparability. Key standards include:

• ISO 2812-2 – Paints and varnishes: Determination of resistance to liquids – Part 2: Water immersion method
• ISO 6270-2 – Paints and varnishes: Determination of resistance to humidity – Continuous condensation
• DIN EN ISO 6270-2 – German equivalent for humidity testing
• ASTM D2247 – Standard Practice for Testing Water Resistance of Coatings in 100% Relative Humidity
• ASTM D4585 – Standard Practice for Testing Coatings under Condensation Conditions

Working Method

Test Principle

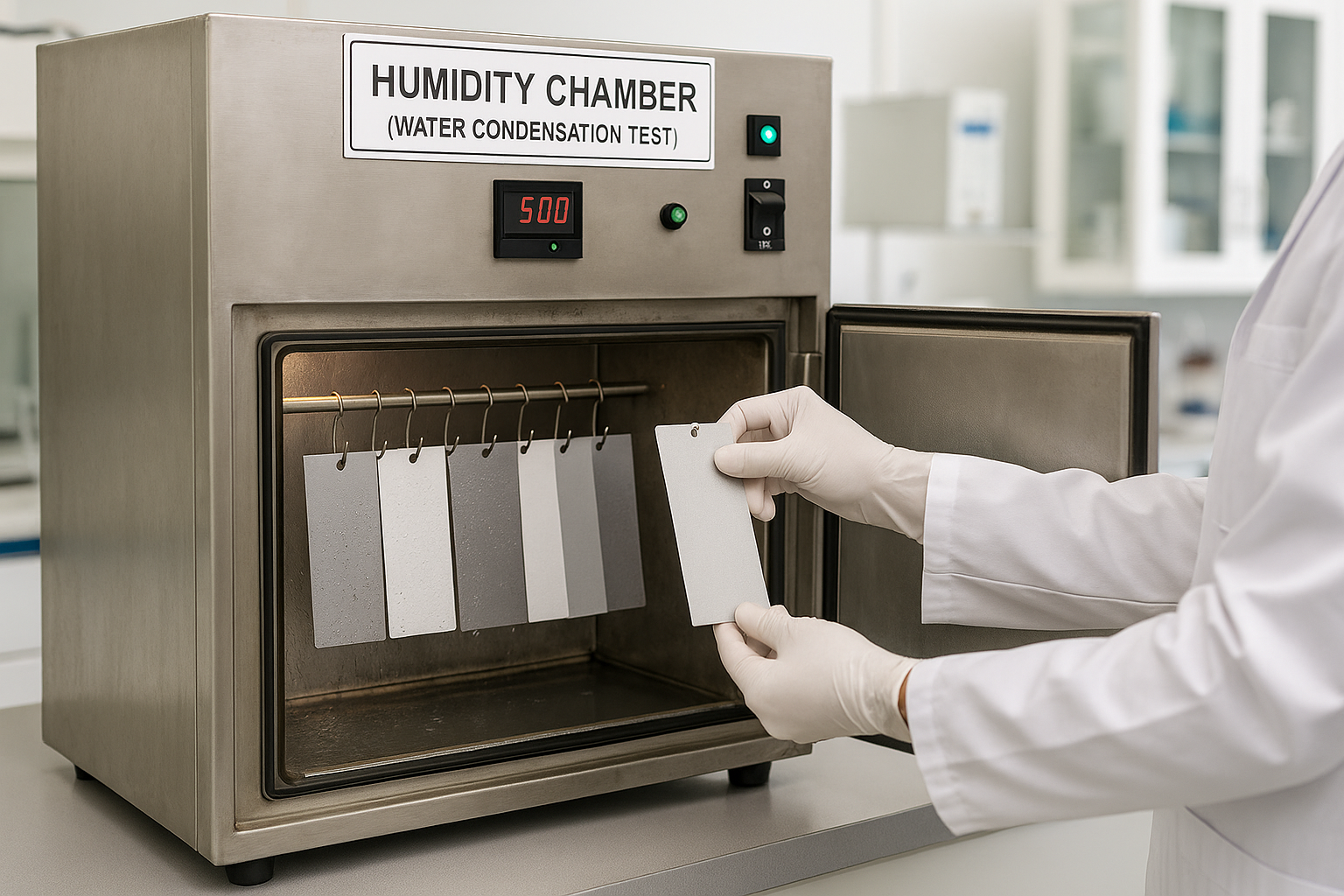

Specimens are placed in a controlled humidity or condensation chamber, where the environment is kept at near 100% relative humidity (RH), often at elevated temperatures. This accelerates the effects of moisture penetration and condensation cycles on the coating system.

Procedure

1. Specimen Preparation
   • Coated test panels are cleaned and conditioned before exposure.
2. Test Chamber Conditions
   • The chamber is maintained at 40°C ± 2°C for condensation tests (ISO 6270-2 CH).
   • For humidity tests, the environment is set to 100% RH at temperatures typically between 38°C – 50°C.
3. Condensation Simulation
   • In condensation mode, water is evaporated and then condenses onto the cooler specimen surface, simulating dew formation.
4. Exposure Duration
   • Exposure times vary depending on product requirements (commonly 240 hours, 500 hours, or 1000 hours).
5. Evaluation
   • After testing, specimens are visually and instrumentally evaluated for:
     • Blistering (size and frequency)
     • Softening or swelling
     • Loss of adhesion or cracking
     • Corrosion beneath the coating (on metallic substrates)

Applications

• Protective and decorative paints on steel, aluminum, and galvanized substrates
• Powder coatings for indoor and outdoor use
• Coil coatings and industrial finishes
• Automotive interior and underbody coatings
• Aerospace and marine coatings subjected to humid environments

Advantages of Humidity/Condensation Testing

• Simulates realistic moisture attack conditions (condensation and water vapor penetration)
• Detects early-stage coating failures not visible in dry testing environments
• Provides a comparative evaluation of different formulations under accelerated humidity stress
• Complements other tests (Salt Spray, QUV Weathering) for a full durability assessment
